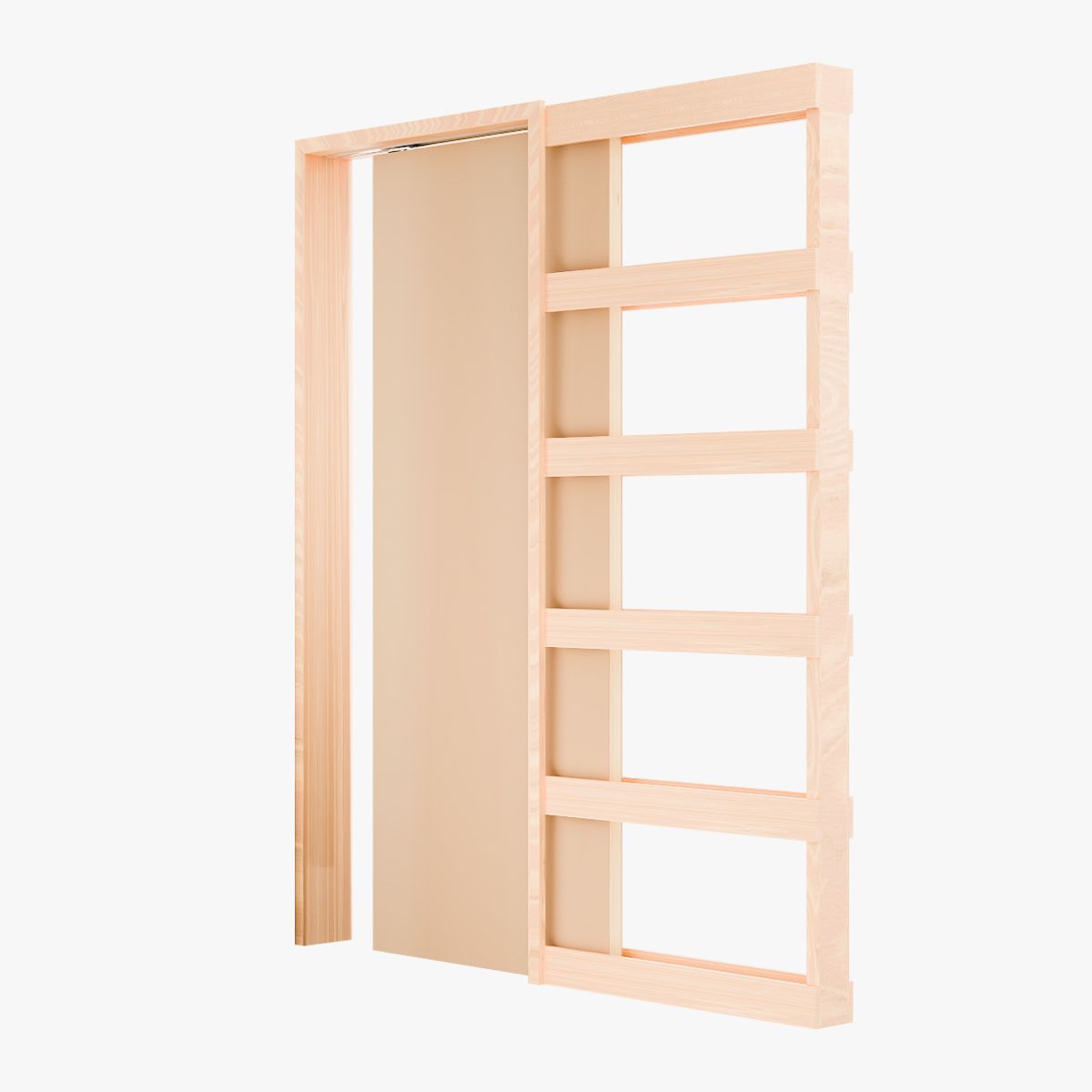

Joey Cavity Units

Made-to-order cavity units manufactured by Joey Cavity Frames built for bespoke durability. Optionality of cavity material, roller hardware, visual finish, weight capacity, and additional accessories altogether amounts to a highly customisable sliding door system. The result is a versatile system for high performance irrespective of project design and specification details.

Build Your Slider

Technical Details

All the technical information you need for specification and ordering.

Frame Material: Zincanneal or KD Hardwood
Standard Stud Sizes: 70mm, 76mm, 90mm & 100mm
Standard Plaster Thickness: 10mm or 13mm
Clearance: Standard 20mm under door (adjustable to 6mm)
Mounting: Direct to finished floor surface
Track & Rollers: Rattle-proof aluminium track + 4 nylon wheel trolley
Adjustability: Fully adjustable without removing door
Weight Capacity: Max 80kg & 180kg models available
Projection: Flush, 50mm projection, or custom projection
Door Guides: T-Bar, Wedge, or Roller

Models

Options for track-and-roller model which deliver on priorities of form and function.

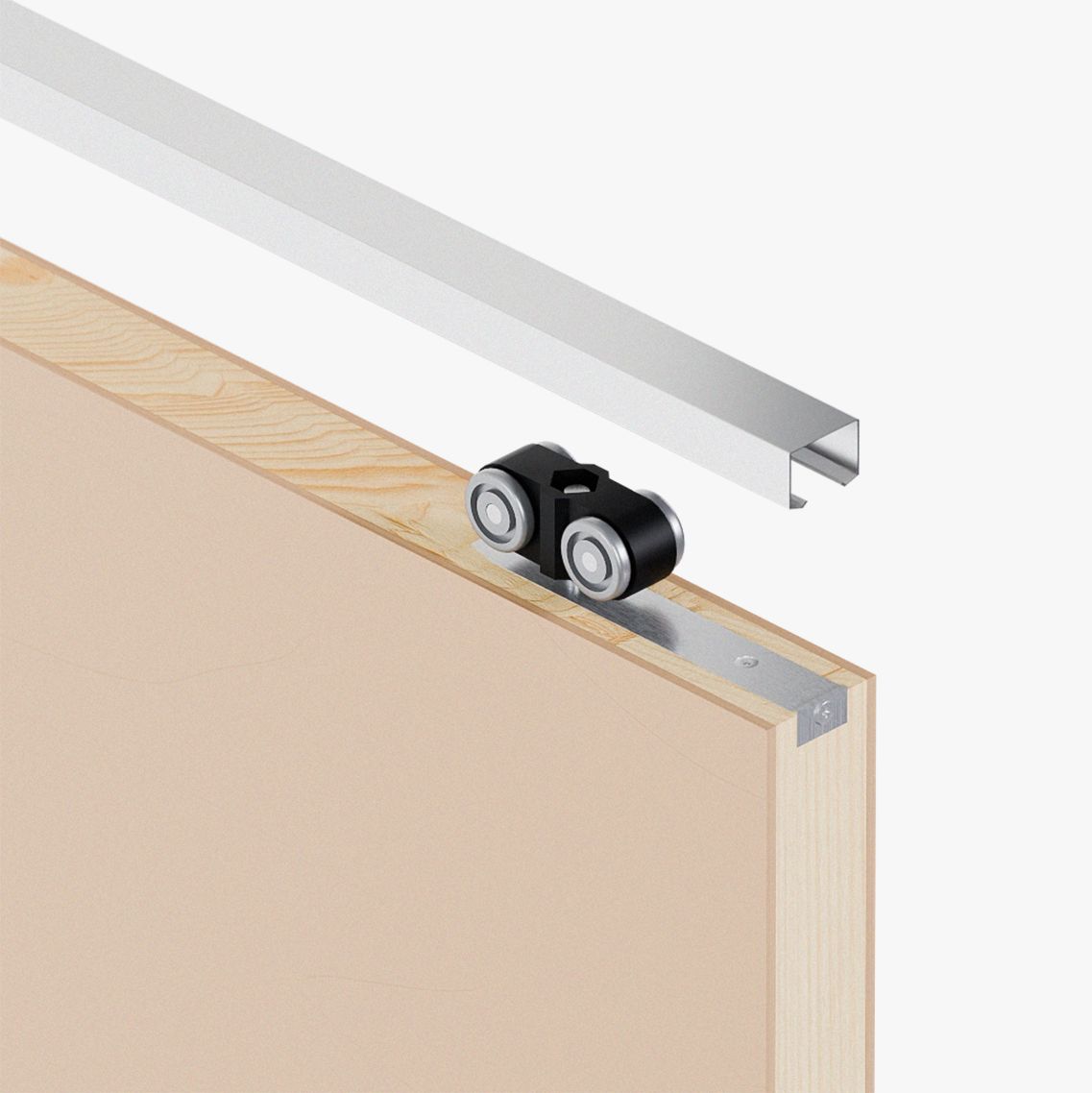

Zero Clearance
Roller troller sits in a recessed bracket for completely concealed hardware with no vertical clearance between top-of-door and header frame.

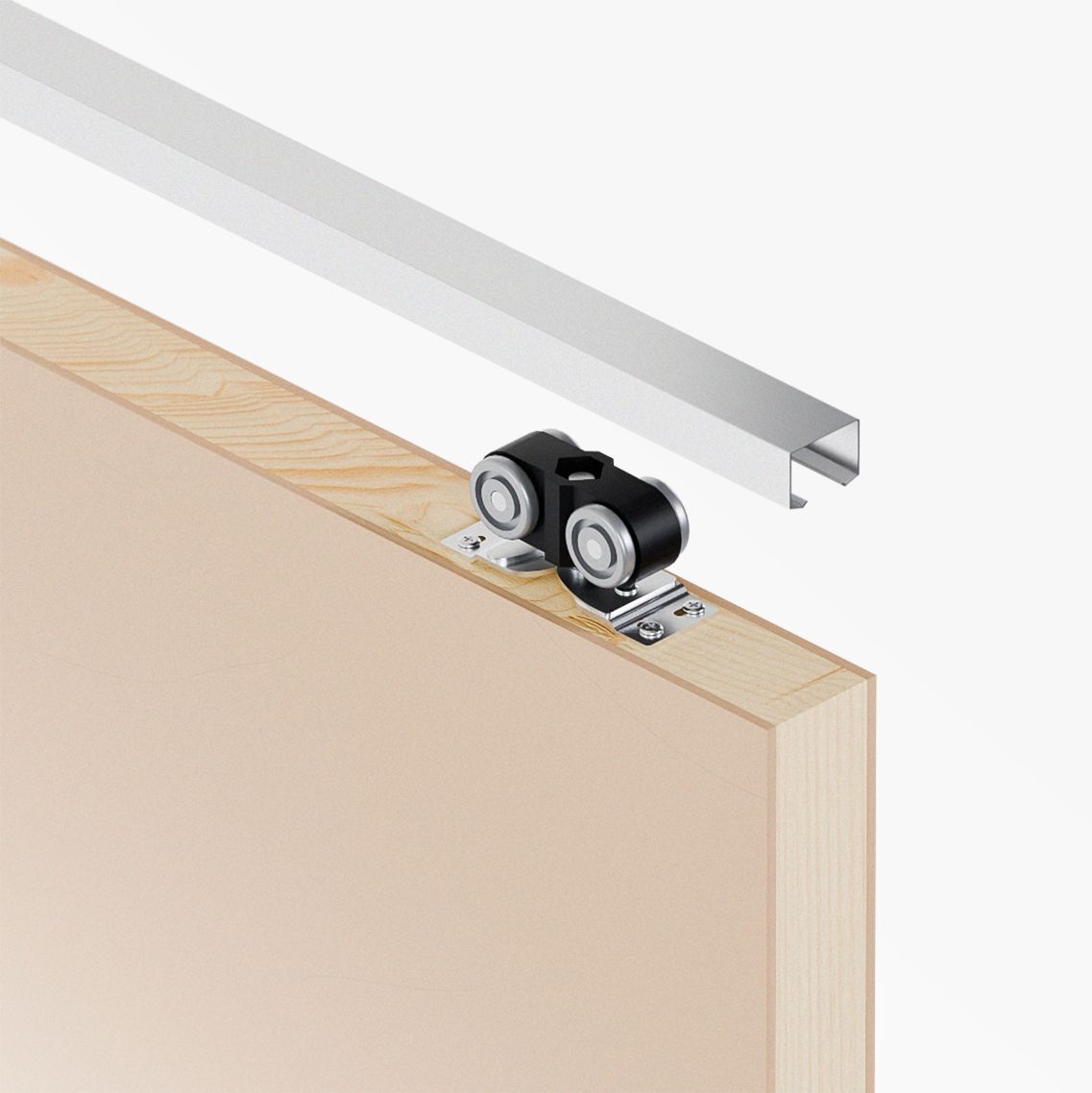

Fast Fix
Roller trolley sits inside a face-fixed bracket. This makes for easy accessibility for adjustment or maintenance down the line.

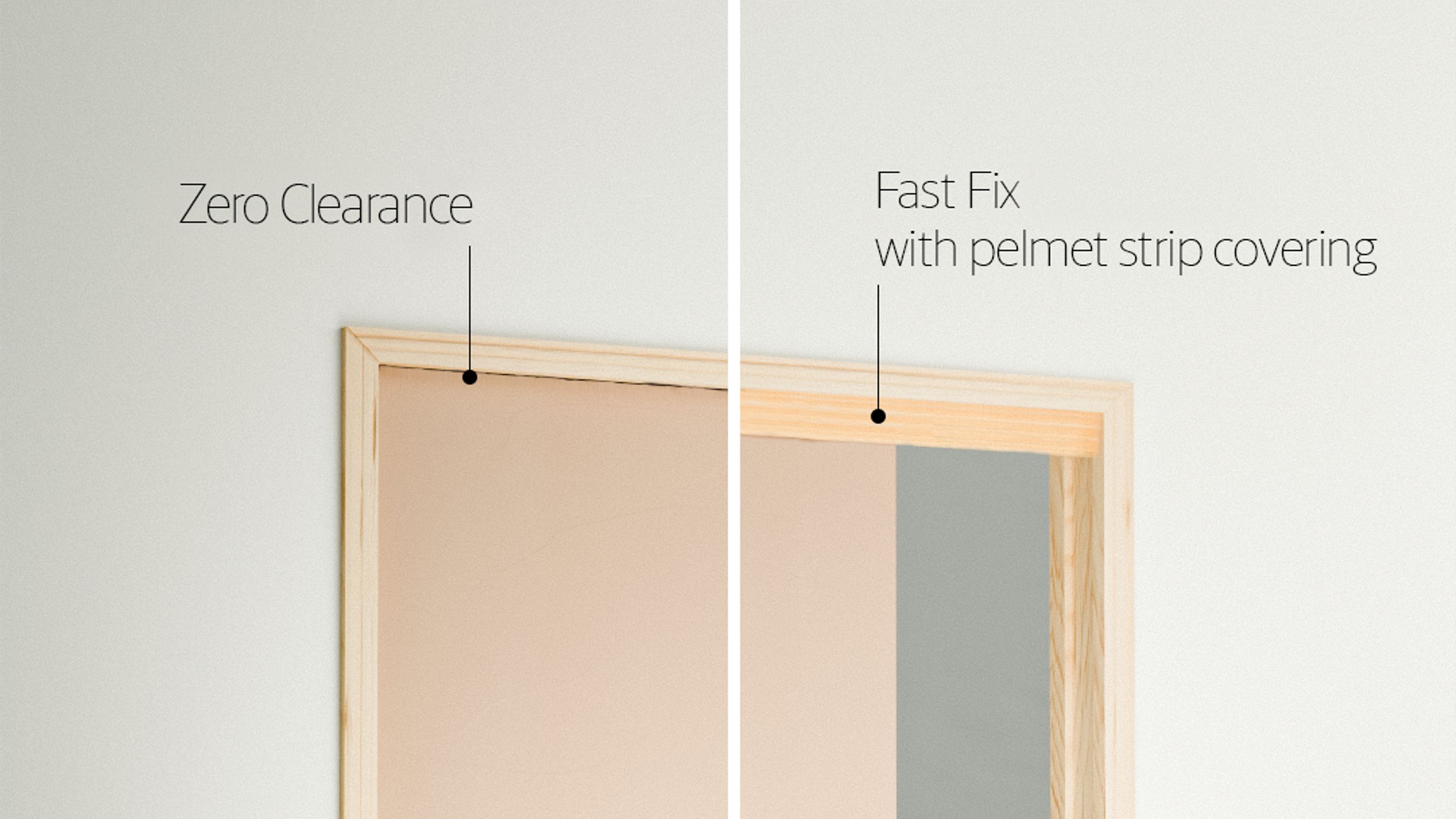

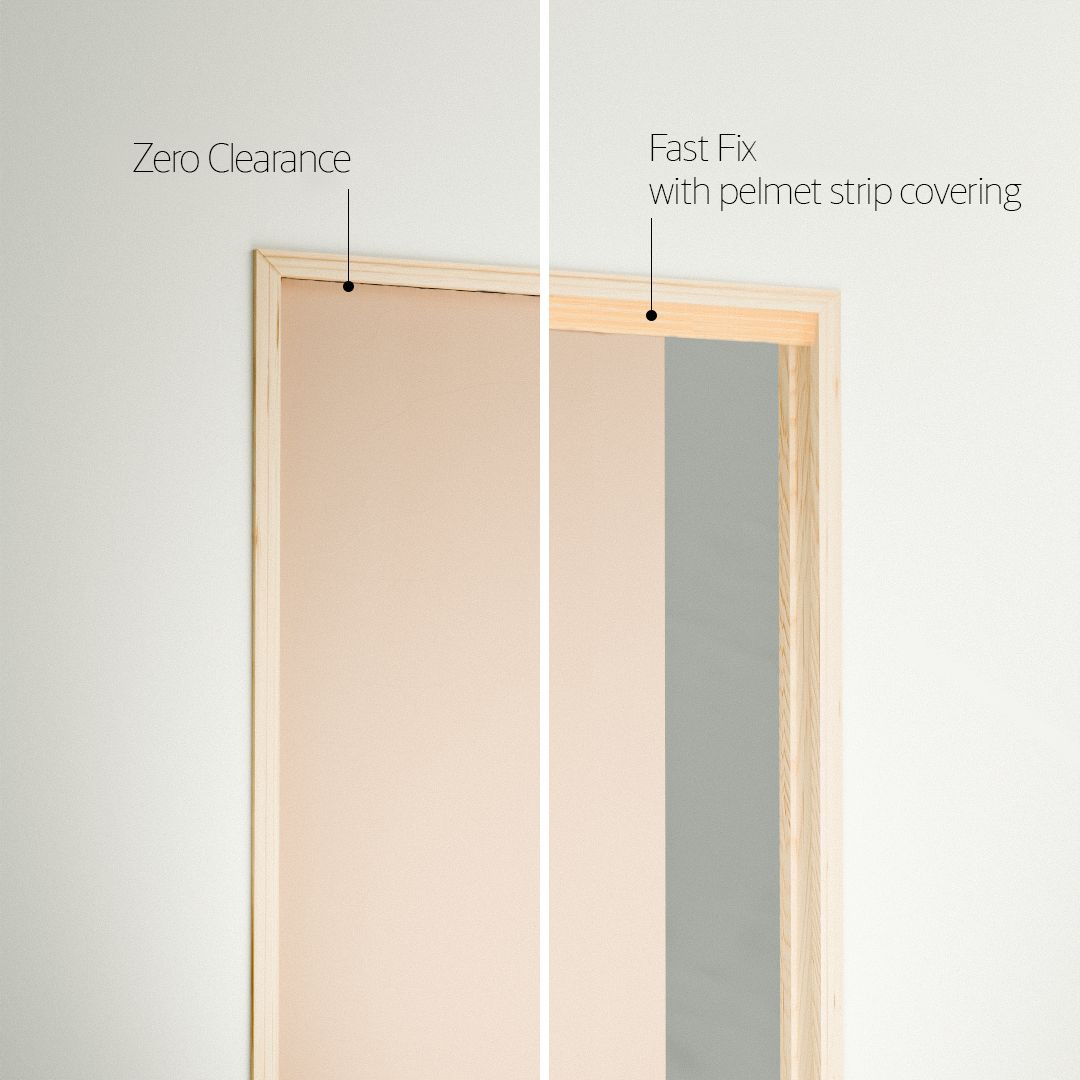

Visual Comparison
Zero Clearance leaves no gap between top of door leaf and header whereas Fast Fix is typically finished with a pelmet section hiding its hardware.

Finishes

How the frame of a cavity slider is finished dictates its visual style.

Architrave
The fitting of timber architraves for a traditional look bringing warmth to an interior space.
Concealed
Framing the doorway with CavKit steel trims to be painted over and blend in with the wall, resulting in an altogether concealed finish befitting of modern design.
Shadowline
Utilising reveal beading to create an inset line around a doorway's perimeter for visual definition.

Accessories

Additional components engineered to enhance cavity slider functionality.

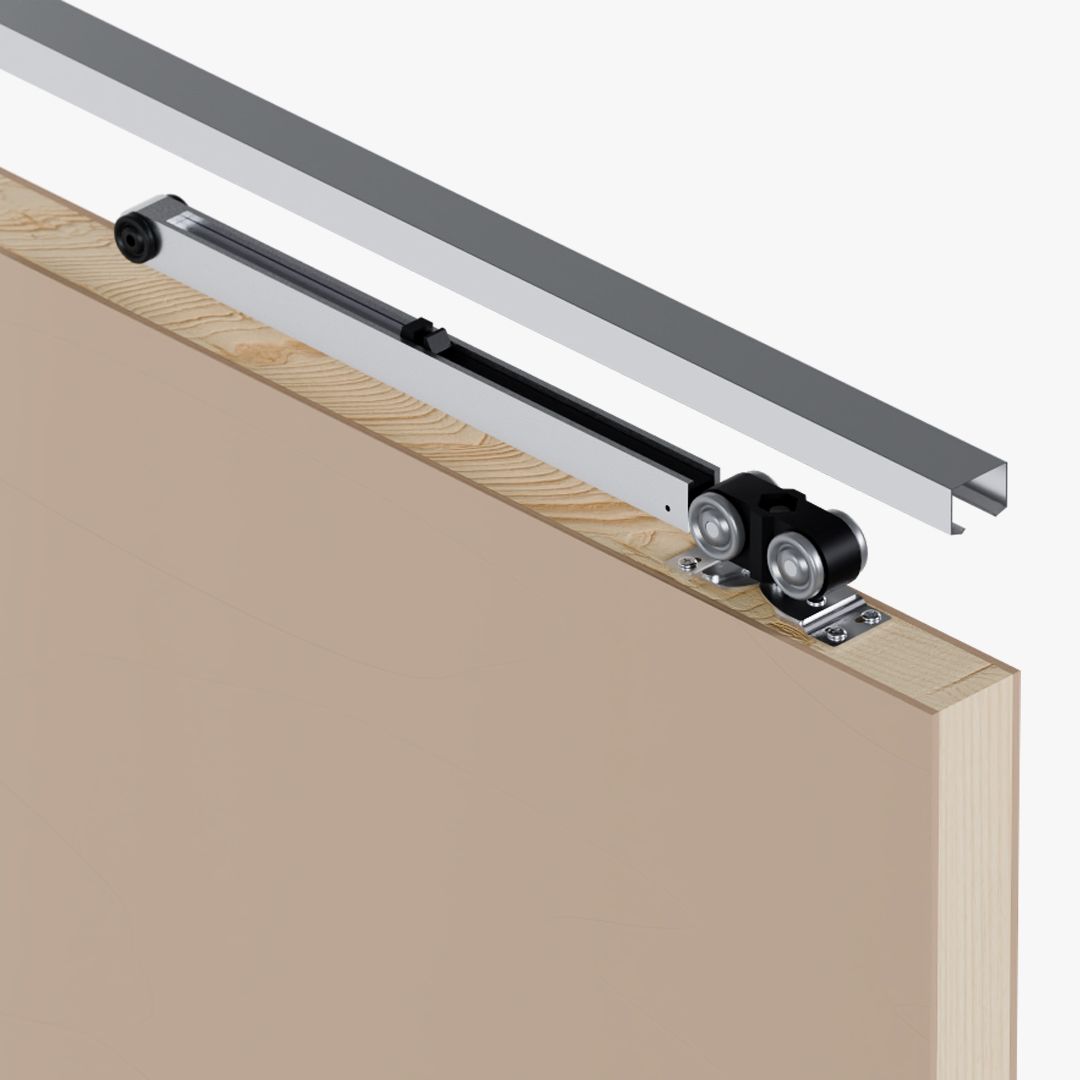

Soft Close
A mechanism attached to the rollers which brings enhanced smoothness to a sliding door's closure. Designed to eliminate risk of banging doors shut and of jamming fingers in the opening. May be easily adjusted, removed or retrofitted at a later point.

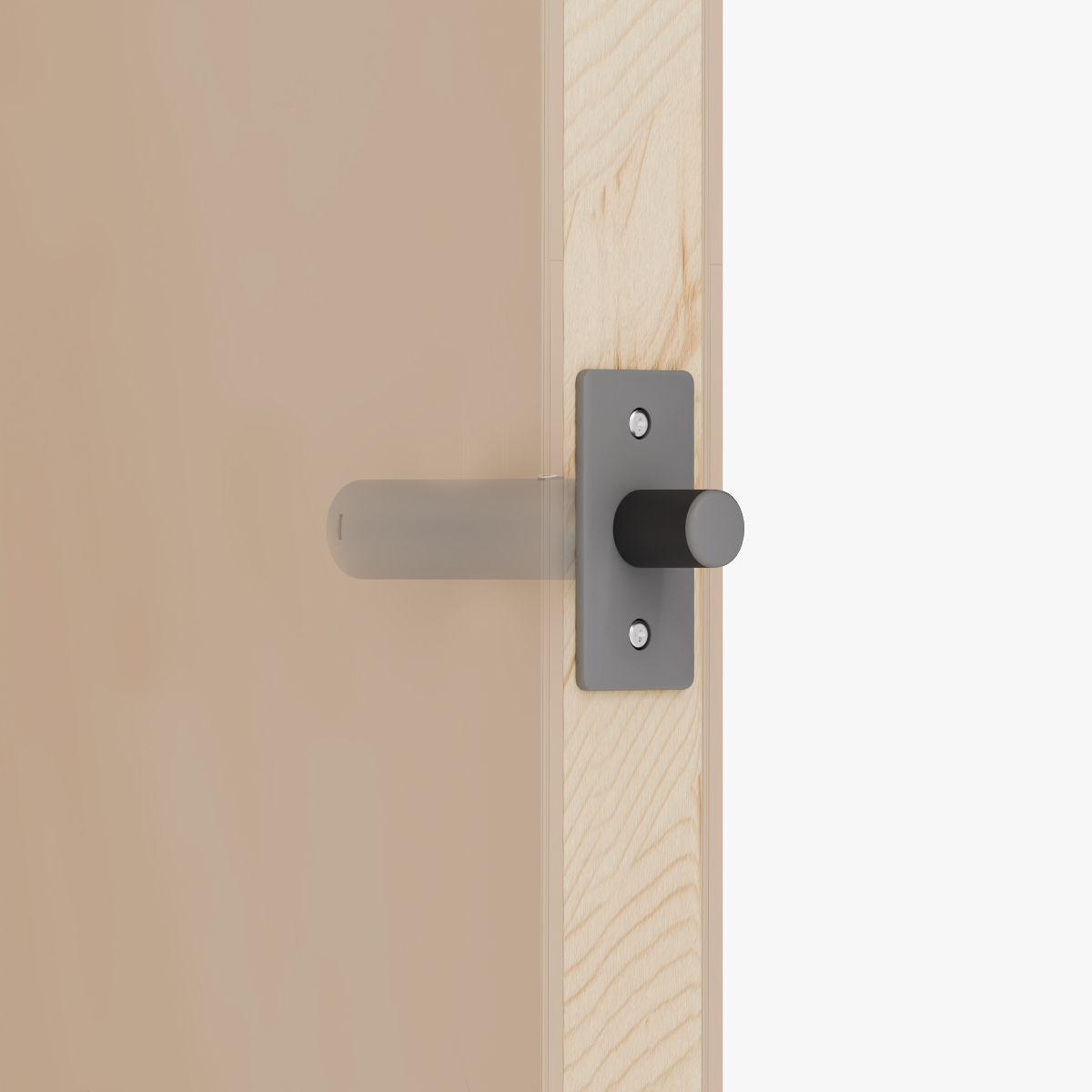

Push Release
A mechanism fitted to the door leaf’s trailing edge to eject the door from its open position with a single push. A push release can serve as an alternative to a latch for a cleaner aesthetic finish.
